Excellent quality Smart Deadbolts - HD-8908 Bluetooth/Wifi Smart Door Lock – Botin

Overview

Quick Details

Door Type: Wood door, Steel door, Stainless Steel door, Aluminum door

Place of Origin: Guangdong, China

Brand Name: Hido

Model Number: HD-8908 tuya

Data Storage Options: Built-in Memory

Network: wifi

Suit for door standard: 38-55mm

Working temperature: -20°- 60°

Working Voltage: 4pcs of 1.5V AA Battery

Working Time: up to 182 days

Working humidity: 20%-90%RH

Product size: L 156*W 59mm

Comparison time: ≤ 1sec

Mortise: 304 Stainless steel

Material: Alloy

Fingerprint Collection Methods: Semiconductor

Packaging & Delivery

Selling Units: Single item

Single package size:  26X21.3X8.5 cm

Single gross weight: 2.000 kg

Package Type: standard Package

Product Features

1.USB Port emergency back up power:When u run out of power,use power bank connect with USB port to unlock.

2.Virtual password:Add any number before or after the real number.The password still can be recognized and unlock.Prevent from password leak out.

3.Passage mode:When too many visitors coming in and out.Activate this mode to Keep the lock under non-locking mode.

4.Full- auto lock.Press the lock key can locking automatically

5.TTLOCK app control via bluetooth,easy connection and stable system.manage all lock in one app.

Detail Produk

product name:Smart autumatic door lock

material: aluminum alloy

door thickness:30mm-50mm

power supply: 6V (4pcsAA Alkaline Batteries not included)

Unlocking Methods: App Access, Fingerprint, Card, Password & Mechanical Key.

User Capacity: 9 Administrators，Fingerprint (100)/Card (100)/ Password (100)，Unlimited App tempera ry passwords.

Note

1.This lock is equipped with mechanical keys for manual unlocking. Remove mechanical keys from the package and keep them in a safe place and always have access to them.

2.To power on the lock, four alkaline AA batteries(not included) are required. Non-alka- line and rechargeable batteries ARE NOT RECOMMENDED.

3.This lock is not designed to be exposed to direct sunlight or rain. It is not waterproof IP rated

4.The operation of setting lock has a stand-by time limit of 10 seconds; Without any activity, lock will shut after 10 seconds.

5.Keep your fingers clean when using this lock.

Please read this manual before operating your Smart Lock, and keep it for further reference.

Detail

product name：smart autumatic door lock

icon：
unlocking via BLE membuka via BLE
unlocking via fingerprint membuka dengan sidik jari
unlocking via time-limited passcode membuka dengan kata sandi yang dibatasi waktu
wifi available（with gateway） wifi tersedia ( dengan gateway )
unlocking via IC card membuka melalui kartu ic card
unlocking via mechanical key membuka dengan kunci manual
picture 1：

suitable for all doors and scenarios cocok untuk semua pintu dan skenario
scenarios1  scenarios2
woode door    pintu kayu
security door pintu keamanan
picture 2：

semiconductor biometrics biometrik semi konduktor
ldentify fingerprint by circular groove design mengidentifikasi sidik jari dengan desain alur melingkar
fingerprint recognition rate* 98.6% tingkat pengenalan sidik jari 98.6%
accurate fingerprint recognition* pengenalan sidik jari yang akurat
picture 3：

automatic lock&unlock otomatis membuka dan mengunci

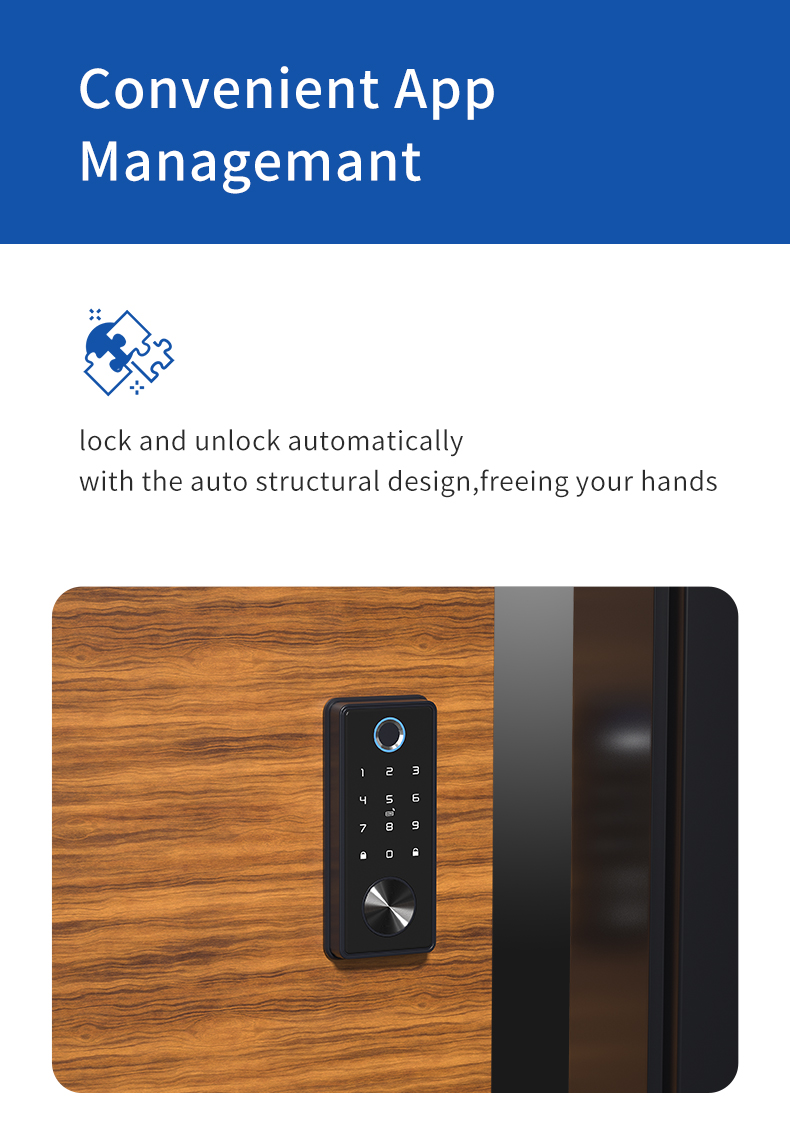

picture 4：

convince app management management aplikasi
lock and unlock automatically with the auto structural design，freeing your hands mengunci dan membuka secara otomatis dengan desain auto struktural ; bebaskan tangan anda
picture 5：

user management  management user
user passcode mangement management passcode user
log
language： Chinese simplified，Chinese traditional，English，spanish， Portuguese，russian，french，Malay，more coming，bahasa yang dipakai : china yang disederhanakan, china tradisional, inggris, spanyol, portugis, rusia, perancis , malay dan banyak yang lainnya
picture 6：

application aplikasi
multi-locks manage mengelola multi kunci
authorized adminnistarators admin resmi
time limited code kode waktu terbatas
query record catatan permintaan
picture 7：

add fingerprint tambah sidik jari
place your finger on the sensor  letakkan jari anda di sensor
follow the prompts…you will be required to place and remove your finger from the sensor 4 times-please patient. Ikuti petunjuknya, anda akan diminta untuk meletakkan dan melepaskan jari anda dari sensor sebanyak 4 kali, harap bersabar
fingerprint manage mengelola sidik jari
add gateway tambah gateway
long press the setting key until the green led blinks faster，then press the next button. tekan lama tombol pengaturan sampai led hijau berkedip lebih cepat lalu tekan tombol selanjutnya.
Next selanjutnya
add gateway tambah gateway

picture 8：

product structure diagram  diagram struktur produk
1. battery case  wadah batre
2. waterproof rubber pad bantalan karet tahan air
3. fingerprint reader   pembaca sidik jari
4. touch keypad  keypad sentuh
5. card reader  pembaca kartu
6. mechanical keyhole  lubang kunci manual
7. lock cylinder silinder kunci
8. emergency charging port port pengisian darurat
